ZoanR Switch for Automotive Ethernet

ZoanR Switch

  • Up to 16 Automotive Ethernet Ports
  • To wake up: GPIO & CAN-FD & WAKE Inputs
  • AVB / TSN
  • VLAN Support, QinQ
  • MACSec
  • TC10
  • Expandable with our CruEther product family

Useful information

  • Data Sheets
  • User Instructions Manuals
  • Tutorials

ZoanR Switch Applications

  • Connect up to 16 Automotive Ethernet ports simultaneously
  • Efficient data distribution
  • 10 Gb/s Ethernet Link (SFP+)
Contact Us

Contact us

How can we help you?

For further information on our automotive products and services, kindly contact us with your specific inquiry and we’ll get back to you as soon as possible.

ZoanR Switch – Automotive Networking with up to 16 Ports

The ZoanR Switch is an Automotive Ethernet Switch with AVB/TSN capabilities, VLAN support, QinQ double tagging, MACsec and TC10 sleep/wakeup functionality. With up to 16 Automotive Ethernet ports, the device is equipped for the zonal architecture of future vehicle architectures.

The ZoanR Switch impresses with a wide range of connections, status signals and standards:

  • Up to 16 Automotive Ethernet Ports
  • 1x WAKE Input
  • 2x GPIO
  • 1x CAN-FD Input
  • 1PPS Sync IN/OUT
  • Status LEDs for each port and the device
  • AVB / TSN Time Sensitive Network (IEEE 802.1AS, IEEE 802.1BA)
  • VLAN Support (IEEE802.1Q) [QinQ–Double Tagging support]
  • MACsec (IEEE 802.1AE) support
  • OPEN Alliance TC10 Sleep/Wake support
  • Configuration by Web Server

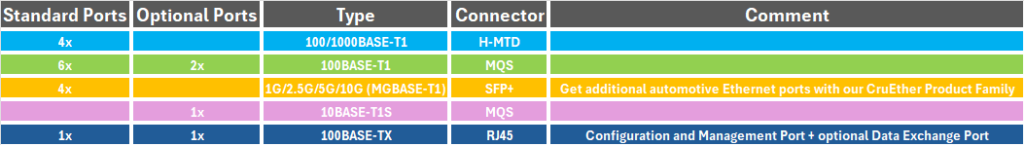

The device comes with a large number of Automotive Ethernet connections as standard. You can configure the device according to your needs. Use the configuration matrix below to select your device.

Power Supply: 12V or 24V

Operating Temp. -40 … +85 °C

Dimensions: ~200/213 x 130 x 36 mm

Choose between 4 different variants to meet your requirements

ZoanR Switch Application

The ZoanR Switch has 4x SFP+ slots which become Automotive Ethernet ports with our CruEthers. Use the CruEther 10G SFP to connect multi-gigabit automotive Ethernet (2.5G/5G/10G) or expand the device with additional 1000Base-T1 ports by using our CruEther 1G SFP.

CruEther 10G SFP, Multigigabit Automotive Ethernet Converter

CruEther 1G SFP, Automotive Ethernet Converter
